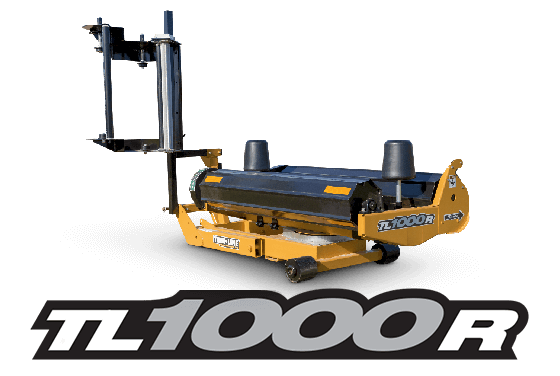

The TL1000R is a valuable addition to any hay producers arsenal. Easy to maintain and even easier to use, the TL1000R uses tractor hydraulics to spin and rotate the bale ensuring it's completely wrapped every time.

Features:
Counter The wrap counter allows you to set the number of wrap rotations for each bale, as well as view the progress for the bale being wrapped.

Offset Twin Wrap Tubeline's Twin Wrap Kit laminates two layers together to form a stronger 2-ply layer of plastic. The Twin Wrap Kit is offset, creating a 4" lead which ensures optimal overlap as the film is layered.

Wrap Cutter The integrated knife conveniently cuts the wrap automatically after you've dumped the bale, allowing you to stay in the tractor and start wrapping the next bale.

Other Standard Features:
• Adjustable Bale Guides
• Skidshoes/Rollers
• Bale Support Rollers
• Transport Lock

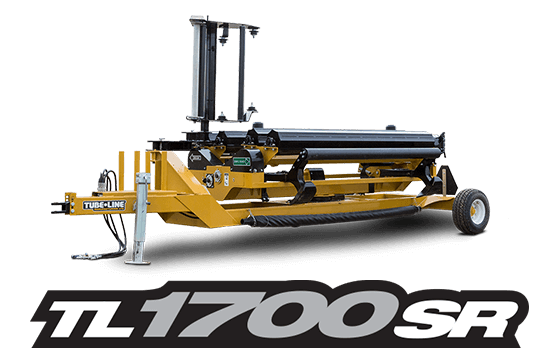

Ideal for small to medium sized operations, Tubeline's new TL1700SR Individual BaleWrapper takes command of your square and round bale wrapping. An easy to use wrap counter allows you to set the desired number of rotations of wrap per bale and displays the current rotation.

Drive Selection
Hydraulically powered, the TL1700SR can easily switch between round and square bales by moving the secondary drive shaft on either of the appropriate stub shaft. Each stub shaft changes the drive ratio to provide the appropriate advancement of the bale.

Integrated Bale Mat
The wrapper's integrated bale mat protects the wrapped bale from being punctured as it is dumped.

Offset Twin Wrap
Tubeline's Twin Wrap Kit laminates two layers together to form a stronger 2-ply layer of plastic. The Twin Wrap Kit is offset, creating a 4" lead which ensures optimal overlap as the film is layered.

Other Standard Features:
• Adjustable Guide Rollers
• Film Crank
• Bale Bumper
• Extra Film Storage Area
• Wrap Cutter
• Wrap Counter

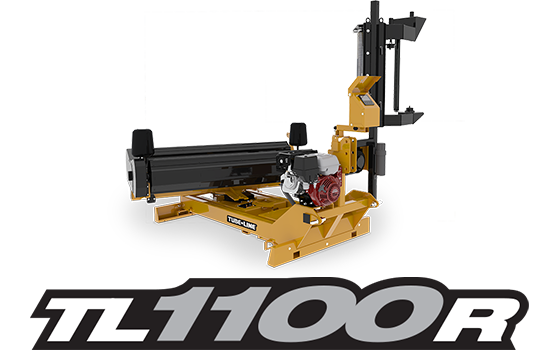

Ideal for small to medium sized operations, the TL1100R is an automatic bale wrapper that takes control of wrapping your round bales individually. Easy to use, this bale wrapper can be run while mounted on the 3PH and connected to the tractors hydraulics or as a standalone unit when equipped with our optional hydraulic power pack.

The TL1100R comes standard with Tubeline's Twin Wrap Kit. The Twin Wrap Kit simultaneously pulls film from two rolls laminating them together to creating a stronger film. It also offsets the wrap creating a 4" lead which ensures optimal overlap as the film is layered.

All functions of the TL1100R can be controlled from the wireless remote providing true one person operation.

Wireless Remote
The wireless remote is capable of running all functions of the TL11OOR.

LCD Display
An easy to read display provides real time information and is easy to read in direct sun light.

Hydraulic Bale Dump
Wrapped bales are hydraulically dumped off the table at the end of the automatic cycle.

Adjustable Wrap Carrier
Two quick release handles allow the fixed twin wrap carrier to be raised or lowered to properly center the wrap on the bale for even distribution.


The offset twin wrap kit provides 4 inches of lead between layers. This increases the number of seams and provides a better seal.

Optional Power Pack
The TL1100R-AP model is equipped with the optional power pack for stand alone operation.

Other Standard Features:
• Twin Offset Wrap Kit
• Fully Automatic with LCD Display
• Mounts on CAT 2 3PH
• Hydraulically Powered
• Hydraulic Dump Function
• Flow Control Regulated Table Rotation
• Mechanical Table Rotate Lock
• Transport Lock
• Wrap Cutter

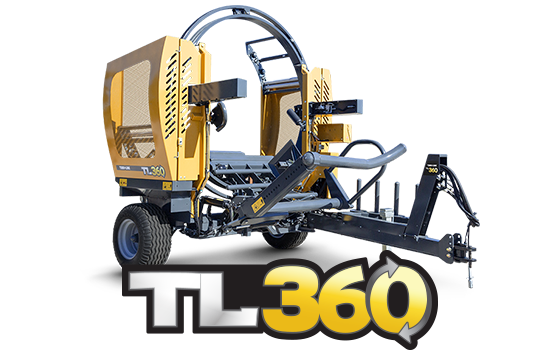

Expanding on our line of individual bale wrappers the TL360 brings high speed in the field wrapping to round bale producers.

The self-loading design allows you wrap on the go while following the baler. The loading arm allows operators to carry a second bale while one is being wrapped.

A cut and hold system ensures that the film is always ready for the next bale while an optional bale tipper lays the bale on its side for easy handling with a grapple.

Control Panel
An intuitive control panel is mounted to the TL360 for easy control when you’re not in the tractor.

Tongue Lock
A tongue lock secures the tongue while the wrapper is in the transport or wrapping position.

Cut and Hold
The cut and hold system ensures that the plastic is secured and ready for new bale that enters the wrapper.

Bale Guides
Adjustable bale guides on the loading arm and wrapping chamber allow the TL360 to accomodate 4' or 5' bales.

Other Standard Features:
• Safety switches on doors
• Shut off Switch on the machine
• Electronic Control Valves
• Fully automatic Cycling
• Precision wrapping
• Two 30” pre-tensioners
• Soft start (Hoop)
• Automatic Cut/Hold
• Bale Counter- Lifetime bale count
• Bale Counter – Resettable
• Self-Diagnostic controls
• 12 button individual function controls
• In-cab full function control
• Easy to read display with RAM mount
• Plugs into 12 Volt power outlet
• High-pressure filter (Filter contamination)
