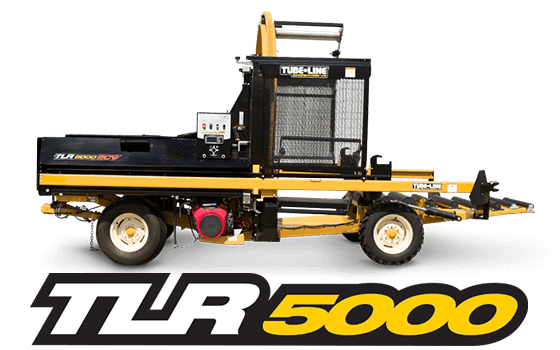

The TLR5000 has been refined resulting in a lighter, more maneuverable machine. But don't let that fool you, this wrapper is built tough to handle heavy silage bales. The easy towing wagon chassis also allows for quick placement. A rear cam axle lowers the chassis bringing the tail to the ground. This ensures the proper angle as the bales are pushed off the wrapper. To ensure good compression, the cam axle allows you to address the amount of drag on the tail to provide the right amount of resistance.

Pre-Tensioners
To create the 55% (approx.) stretch of the plastic, the pre-tensioners are knurled which allows them to grip and pull the plastic between the rollers activating the bonding agent in the film.

Film Snap - Patent Pending
Standard on all inline Balewrapper models, Tubeline’s Film Snap easily cuts wrap with a single action. Press and hold the Film Snap plunger located beside the operator’s panel until both the tensioners pass, triggering the cutting action. The Film Snap bar snaps into action safely cutting the wrap without stopping the cycle.

3 Year Warranty
Inline wrappers carry a 3 Year Limited Warranty. For more information please contact Tubeline Manufacturing.

ECV Exclusive Features
Soft Start
Bale Counter (Lifetime)
Bale Counter (Resettable)
Bale Presets
Large Easy to Read Display
Remote Engine Start
Self-Diagnostics
Single Joystick Control to drive/steer
Other Standard Features
• Large Hoop Now Accommodates Bales up to 6'
• Main Control Panel Wired for Field Installed Options
• Safety Shut Off Switch on Guards
• Safety Shut Off Switch on Panel
• Retractable Tongue
• Folding Tongue
• Electric start 13 HP Honda gas engine (18 amp charging system)
• Low Oil Alert on Engine
• Spark Arrestor on Engine
• Hydraulic Manifold
• Hydraulic Steering
• Temperature Gauge on Hydraulic Tank
25L / 6.6 USG Fuel Tank with Fuel Pump
• Limit Switches
• Adjustable Stroke Length on Charge Table
• Electric over Hydraulic Controls
• Fully Automatic Cycling
• Automatically Idles Down When Cycle • Completed
• Drive Wheel
• Wrap Carrier
• Lock Pin (Hoop)
• Roller Wheels
• Push Ram
• Push Ram Cylinders
• Cross Tube Unloading (to push off last bale) Patented
• King Pins with Tapered Bearings
• Road Lights
• 3-Year Warranty
• Guide Rollers on Discharge Ramp
• Quick Start Power Jack
• Hydraulic Over Centre Cam Axle to Pack Bales Tightly
• Lug Tires on Rear Axle
