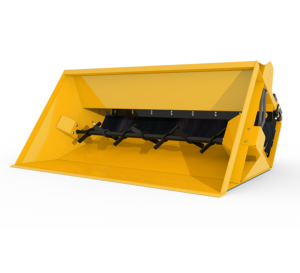

Side Discharge Sand Bucket

• Minimum 12 GPM required
• Made of same material as sawdust bucket
• Baffle brace and beater to improve flow and keep weight off belt
• 34″H x 50″L outside dimensions
• Two hydraulic motors on discharge belt (72″, 84″ & 96″ only)
• Bolted adaptation for loader quick-tach. Easily convert to most loaders
• For Outside Width add 2-1/2″ to Inside Width dimension.

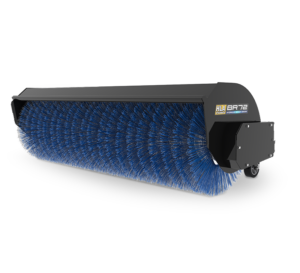

Hydraulic Rotary Broom

• Unique lateral and forward float
• Gauge wheels
• Includes hydraulic hoses and flat-faced couplers
• 26″ diameter poly/steel bristle wafers
• Hydraulic angle 30° right and left
• Direct motor drive on broom
• Hydraulic requirements: 12-20 GPM @ 1500 – 3000 PSI
• Optional OEM Connection Wire Kit
• Equipped with 50/50 poly steel bristles (optional all poly)
• Optional Kit to reverse broom rotation for sweeping away from doors etc.
• Optional Dust Suppression Water Kit available

Hydraulic Rotary Pick-up Broom

• Ideal for cleaning up parking lots, construction sites, streets, curbs and gutters as well as parks and recreation areas etc.
• Includes hydraulic hoses and flat-faced couplers
• 26″ diameter poly/steel bristle wafers
• Direct motor drive on broom
• Hydraulic requirements: 12-20 GPM @ 1500 – 3000 PSI
• Front gauge wheel
• Reversible broom rotation for sweeping away from doors etc.
• Bucket features a replaceable hardened 3/4 x 6 double bevel cutting edge
• Optional Dust Suppression Water Kit available

Stone Fork (Retainer Style Tine) with Split Grapple – REGULAR DUTY

• REGULAR DUTY – UP TO 5500 LB CAPACITY
• Two independent grapples
• Ideal for brush & rock clean up
• Ideal for awkward abrasive loads
• 30″ overall height
• 40″ overall depth
• Comes with 2-1/2″ x 8″ cylinders

2,000 LB Cap. – Heavy Duty Pallet Fork

• 1″ x 3 1/8″ Class II hook-type solid fork lift tines
• 2000 lbs capacity @ 24″ L.C.
• C/w guard
• Carriage width 32″ – 50″

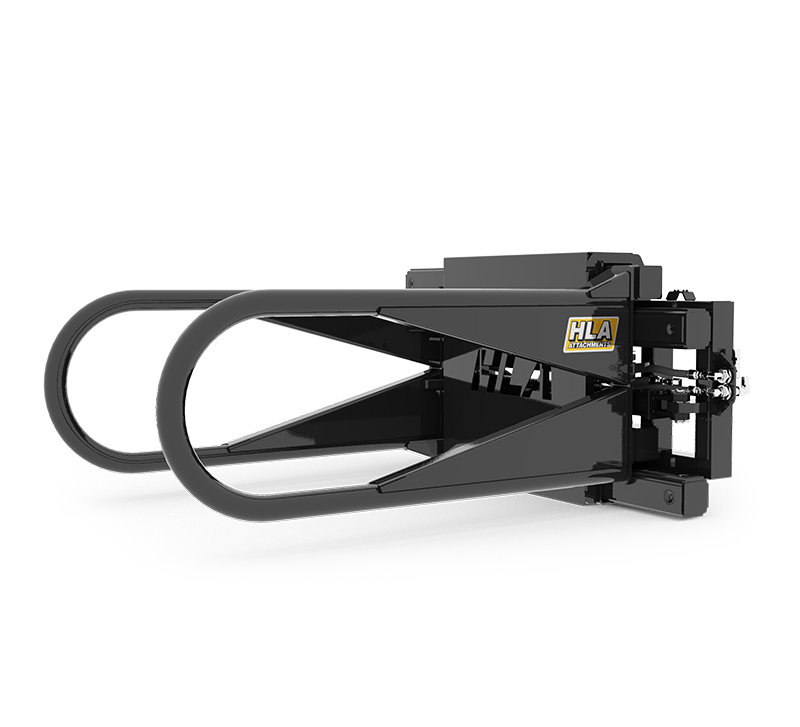

Square Bale Squeeze (BG7000)

• 86″ extended 30″ Retracted
• Arms are 50″ long, 20″ tall
• Dual 2 1/2″ x 28″ stroke cylinder
• Slim brace arm design allows for tight stacking of bales
• Approximate weight: 810 lbs
• 3000 lbs capacity

]

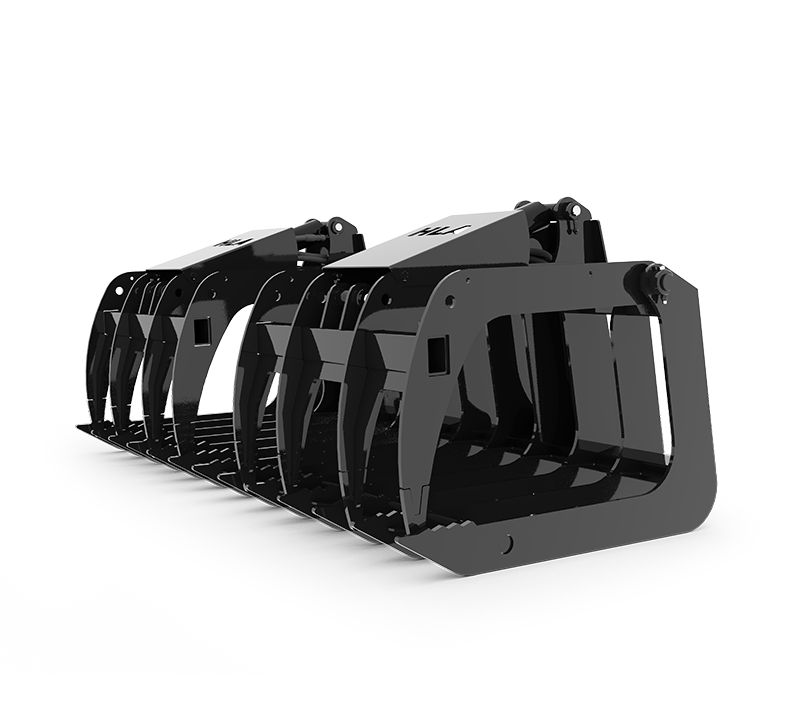

Brush Grapple

• Opens to 48″ wide from ground to point of grapple
• Tine tips and grapple tips are AR400 material
• Tine spacing 5-1/2″ between
• Independent grapples for clamping of awkward loads
• Comes with 2-1/2″ x 8″ cylinders
