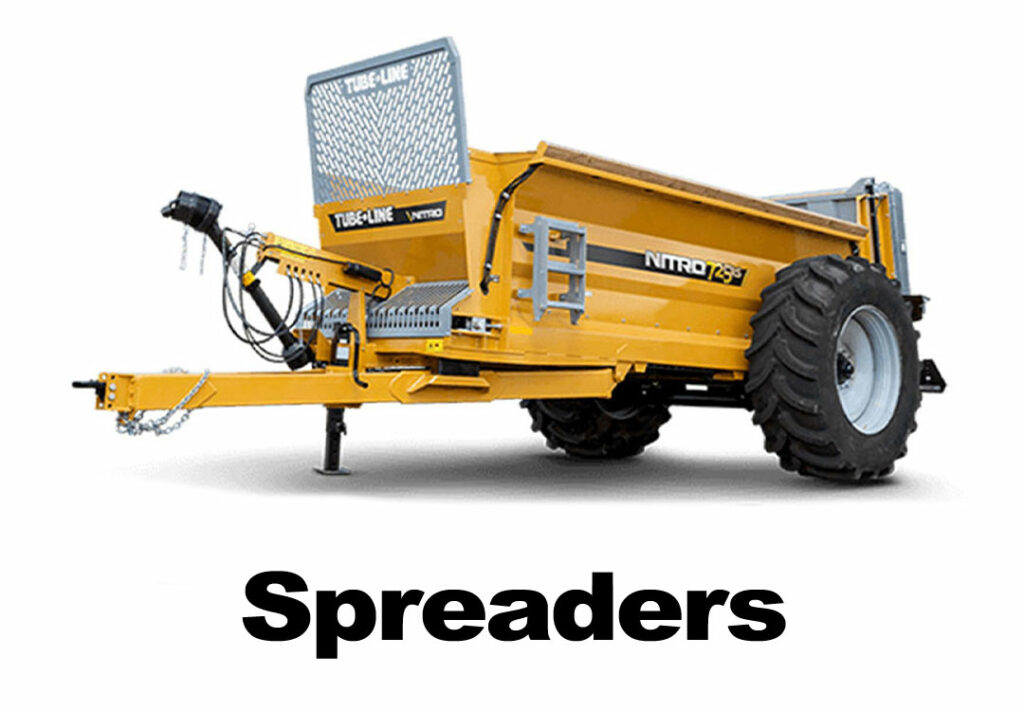

Built with smaller operations in mind, the Nitro RS series is constructed with top grade materials to handle real day-to-day farming. With standard features including robust 5/8″ apron chains, 34″ diameter vertical beaters, and an adjustable guillotine endgate. The Nitro RS series of spreaders feature a limited lifetime apron chain warranty, steel box sides, and 3/4″ poly board floors.
Responding to market demand the NITRO Rancher Series was developed to ensure smaller operations get the same metering in a format tailored to them. NITRO RS spreaders are ideal for farmers trying to keep their yards clean while delivering rich nutrients to the field. Removeable beater assemblies provide increased value and functionality, allowing the NITRO to operate as a rear discharge trailer with a live floor when not spreading.
Responding to market demand the NITRO Rancher Series was developed to ensure smaller operations get the same metering in a format tailored to them. NITRO RS spreaders are ideal for farmers trying to keep their yards clean while delivering rich nutrients to the field. Removeable beater assemblies provide increased value and functionality, allowing the NITRO to operate as a rear discharge trailer with a live floor when not spreading.
Apron Chain Limited Lifetime Warranty
Under the Apron Chain Limited Lifetime Warranty, Tubeline will replace a broken apron chain or connecting link on any Nitro model manure spreader. Restrictions may apply. For more information, please contact the Tubeline office.
CV Shaft
All Nitro models come equipped with a CV (Constant Velocity) Shaft allowing for a tighter turning radius, greatly reducing the incidence of driveline chatter in a tight turn, and increasing the longevity of the driveline.
Guillotine Endgate
The guillotine endgate can be opened partially to meter the amount of material being delivered to the beater assembly. This ensures the optimal delivery of lime and various manure consistencies to the field.
Other Standard Features
- Hydraulic-Driven Apron Chain
- Standard Rubber Seal Kit (Endgate & Front Panel)
- Apron Chain
- Galvanized Slats
- Quick Drop Beaters
- Replaceable Reversible Knives
- Robust and Dynamically Balanced
- Beater Wedge
- Driveline Protection
- Industrial Jack
- CV Shaft
- High Load Bearings
| Specifications | Nitro 375RS |
|---|---|
| Carrying Capacity | 13 Ton |
| Heaped (cu. ft.) | 444 |
| Struck Level (cu. ft.) | 266 |
| Inside Dimensions (Inside width between flare 89″) | 62.5″W x 34.5″D x 175″L |
| Overall Length | 25′ |
| Overall Outside Width (Single Axle) | 126″ |
| Overall Outside Width (Tandem Axle) | 115″ |
| Loading Height (Single Axle) | 76″ |
| Loading Height (Tandem Axle) | 75″ |
| Wheel Hub Capacity (Tandem Axle) | 12,000 lbs. (8-bolt) x4 |
| Tandem Tire Sizes | 425/22.5 Recap Truck 550/45-22.5 Flotation |
| Wheel Hub Capacity (Single Axle) | 16,000lbs (10 bolt) x2 |
| Single Tire Sizes | 600/65-34 |
| Beater Diameter | 34″ |
| Beater Speed | 420 RPM |
| PTO Speed | 1000 RPM |
| Apron Chain Link Dia. | 5/8″ |
| Shipping Weight | 9,139 lbs. |
| Required Tractor PTO HP | 90 |
| Brakes Available | Yes |
Capacities determined by ASAE Sth S324.2
Paddle Kit
The optional bolt on paddle kit cups material to provide better throw.
Enhanced Rubber Seal Kit
The Enhanced Rubber Seal Kit adds a U-shape compression seal to the front panel and the endgate to help contain semi solid materials.
Scale Ready Axle
An optional scale ready axle is available for RS Spreaders (factory installed). This will allow a scale system be added at a later date.
Led Lights
LED lights and flashers ensure transit safety. Innovative light covers mechanically open and close in sequence with the end gate, ensuring lights are protected while spreading.
Oscillating Ball Hitch
Optional on all models is the oscillating ball hitch available in various pin sizes.
Digi-Star® Scale System
The optional Digi-Star® 5pt 60,000 lb. differential weigh beam system is available on all Nitro models. Four of the load cells are located under the box and the fifth cell is placed on the hitch. Accounting for environmental protection, the Digi-Star® scale system lets you know how many tons you’ve hauled and spread on your fields, perfect for both farmers and custom operators.
Optional Colours
In addition to the standard yellow, the Nitro lineup is available in red, green, blue and orange.
Gate Indicator
With the gate indicator, you can quickly and easily see how open the endgate is from the seat of your tractor.
Athene ISO Bus Variable Rate Control System
ISOBUS UT displays spreader controls and variable rate (if available on terminal). Athene/SL2 controls spreader and scale system.
Brakes
When equipped with a brake system, all Nitro spreaders come with two calipers per side for a total of four. Hydraulically operated, these calipers provide the necessary clamping force to keep even our monstrous Nitro 950 in line. Single axle shown. Braking configurations may vary with model. Check model specifications for brake availability.
Responding to market demand the NITRO Rancher Series was developed to ensure smaller operations get the same metering in a format tailored to them. NITRO RS spreaders are ideal for farmers trying to keep their yards clean while delivering rich nutrients to the field. Removeable beater assemblies provide increased value and functionality, allowing the NITRO to operate as a rear discharge trailer with a live floor when not spreading.
Apron Chain Limited Lifetime Warranty
Under the Apron Chain Limited Lifetime Warranty, Tubeline will replace a broken apron chain or connecting link on any Nitro model manure spreader. Restrictions may apply. For more information, please contact the Tubeline office.
CV Shaft
All Nitro models come equipped with a CV (Constant Velocity) Shaft allowing for a tighter turning radius, greatly reducing the incidence of driveline chatter in a tight turn, and increasing the longevity of the driveline.
Guillotine Endgate
The guillotine endgate can be opened partially to meter the amount of material being delivered to the beater assembly. This ensures the optimal delivery of lime and various manure consistencies to the field.
Other Standard Features
- Hydraulic-Driven Apron Chain
- Standard Rubber Seal Kit (Endgate & Front Panel)
- Apron Chain
- Galvanized Slats
- Quick Drop Beaters
- Replaceable Reversible Knives
- Robust and Dynamically Balanced
- Beater Wedge
- Driveline Protection
- Industrial Jack
- CV Shaft
- High Load Bearings
| Specifications | Nitro 575RS |
|---|---|
| Carrying Capacity | 16 Ton |
| Heaped (cu. ft.) | 576 |
| Struck Level (cu. ft.) | 379 |
| Inside Dimensions (Inside W btwn. flare 102 & 89″ respectively) | 62.5″W x 45.5″D x 218″L |
| Overall Length | 27.5’ |
| Overall Outside Width (Single Axle) | 131″ |
| Overall Outside Width (Tandem Axle) | 116″ |
| Loading Height (Single Axle) | 88.5″ |
| Loading Height (Tandem Axle) | 80″ |
| Wheel Hub Capacity (Tandem Axle) | 12,000 lbs. (8-bolt) x4 16,000 lbs. (10-bolt) x4 |
| Tandem Tire Sizes | 425/22.5 Recap Truck 550/45-22.5 Flotation 700/50-26.5 Flotation |
| Wheel Hub Capacity (Single Axle) | 20,000lbs (10-bolt) x4 |
| Single Tire Sizes | 710/70 R38 Tractor Lug |
| Beater Diameter | 34″ |
| Beater Speed | 420 RPM |
| PTO Speed | 1000RPM |
| Apron Chain Link Dia. | 5/8″ |
| Shipping Weight | 11,000 lbs. / 4,990 kg |
| Required Tractor PTO HP | 125 |
| Brakes Available | Yes |
Capacities determined by ASAE Sth S324.2
Paddle Kit
The optional bolt on paddle kit cups material to provide better throw.
Enhanced Rubber Seal Kit
The Enhanced Rubber Seal Kit adds a U-shape compression seal to the front panel and the endgate to help contain semi solid materials.
Scale Ready Axle
An optional scale ready axle is available for RS Spreaders (factory installed). This will allow a scale system be added at a later date.
Led Lights
LED lights and flashers ensure transit safety. Innovative light covers mechanically open and close in sequence with the end gate, ensuring lights are protected while spreading.
Oscillating Ball Hitch
Optional on all models is the oscillating ball hitch available in various pin sizes.
Digi-Star® Scale System
The optional Digi-Star® 5pt 60,000 lb. differential weigh beam system is available on all Nitro models. Four of the load cells are located under the box and the fifth cell is placed on the hitch. Accounting for environmental protection, the Digi-Star® scale system lets you know how many tons you’ve hauled and spread on your fields, perfect for both farmers and custom operators.
Optional Colours
In addition to the standard yellow, the Nitro lineup is available in red, green, blue and orange.
Gate Indicator
With the gate indicator, you can quickly and easily see how open the endgate is from the seat of your tractor.
Athene ISO Bus Variable Rate Control System
ISOBUS UT displays spreader controls and variable rate (if available on terminal). Athene/SL2 controls spreader and scale system.
Spinner Deck
For better management and spreading performance of poultry litter, Nitro spreaders can be equipped with an optional spinner deck. The interchangeable quick-drop beater system allows operators to conveniently switch between the vertical or spinner deck beater assemblies offering flexibility to both producers and custom operators.
Brakes
When equipped with a brake system, all Nitro spreaders come with two calipers per side for a total of four. Hydraulically operated, these calipers provide the necessary clamping force to keep even our monstrous Nitro 950 in line. Single axle shown. Braking configurations may vary with model. Check model specifications for brake availability.
Responding to market demand the NITRO Rancher Series was developed to ensure smaller operations get the same metering in a format tailored to them. NITRO RS spreaders are ideal for farmers trying to keep their yards clean while delivering rich nutrients to the field. Removeable beater assemblies provide increased value and functionality, allowing the NITRO to operate as a rear discharge trailer with a live floor when not spreading.
Apron Chain Limited Lifetime Warranty
Under the Apron Chain Limited Lifetime Warranty, Tubeline will replace a broken apron chain or connecting link on any Nitro model manure spreader. Restrictions may apply. For more information, please contact the Tubeline office.
CV Shaft
All Nitro models come equipped with a CV (Constant Velocity) Shaft allowing for a tighter turning radius, greatly reducing the incidence of driveline chatter in a tight turn, and increasing the longevity of the driveline.
Guillotine Endgate
The guillotine endgate can be opened partially to meter the amount of material being delivered to the beater assembly. This ensures the optimal delivery of lime and various manure consistencies to the field.
Other Standard Features
- Hydraulic-Driven Apron Chain
- Standard Rubber Seal Kit (Endgate & Front Panel)
- Apron Chain
- Galvanized Slats
- Quick Drop Beaters
- Replaceable Reversible Knives
- Robust and Dynamically Balanced
- Driveline Protection
- Industrial Jack
- CV Shaft
- High Load Bearings

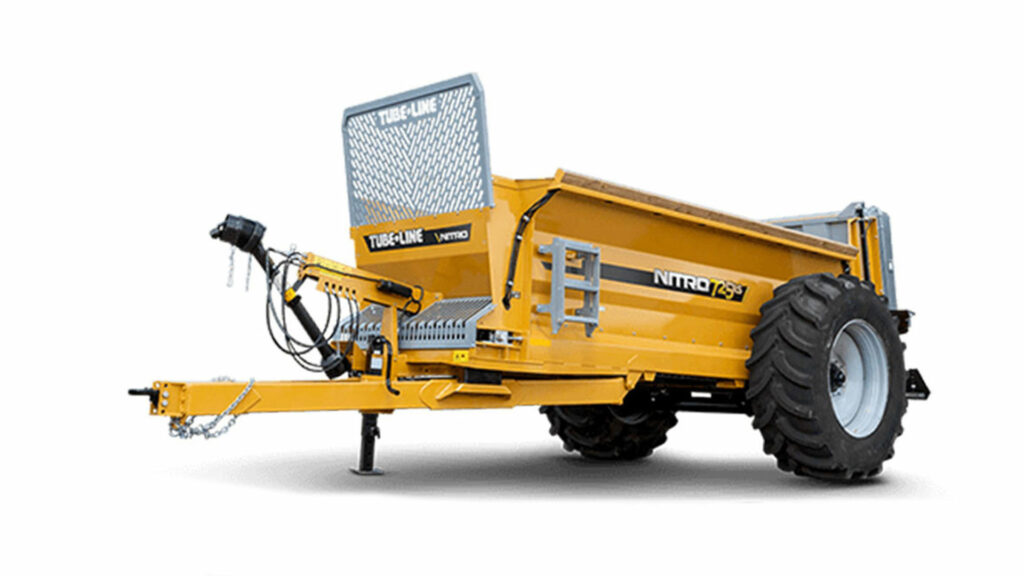

| Specifications | Nitro 725RS |
|---|---|
| Carrying Capacity | 19 Ton |
| Heaped (cu. ft.) | 767 |
| Struck Level (cu. ft.) | 507 |
| Inside Dimensions (Inside W btwn. flare 102 & 89″ respectively) | 71″W x 50″D x 240″L |
| Overall Length | 30.3′ |
| Overall Outside Width (Single Axle) | 136″ |
| Overall Outside Width (Tandem Axle) | 136″ |
| Loading Height (Single Axle) | 93″ |
| Loading Height (Tandem Axle) | 93″ |
| Wheel Hub Capacity (Tandem Axle) | 16,000 lbs. (10-bolt) x4 |
| Tandem Tire Sizes | 700/50-26.5 Flotation Tires |
| Wheel Hub Capacity (Single Axle) | 20,000 (10 bolt) x2 |
| Single Tire Sizes | 710/70 R42 Tractor |
| Beater Diameter | 36″ |
| Beater Speed | 420 RPM |
| PTO Speed | 1000RPM |
| Apron Chain Link Dia. | 5/8″ |
| Shipping Weight | 15,652 lbs. / 7,099 kg |
| Required Tractor PTO HP | 165 |
| Brakes Available | Yes |
Capacities determined by ASAE Sth S324.2
Paddle Kit
The optional bolt on paddle kit cups material to provide better throw.
Enhanced Rubber Seal Kit
The Enhanced Rubber Seal Kit adds a U-shape compression seal to the front panel and the endgate to help contain semi solid materials.
Scale Ready Axle
An optional scale ready axle is available for RS Spreaders (factory installed). This will allow a scale system be added at a later date.
Silage Extensions
Select NitroRS and Nitro models can easily double as a silage hauler, with the addition of optional height-extenders. Silage extensions are not recommended for manure.
Led Lights
LED lights and flashers ensure transit safety. Innovative light covers mechanically open and close in sequence with the end gate, ensuring lights are protected while spreading.
Oscillating Ball Hitch
Optional on all models is the oscillating ball hitch available in various pin sizes.
Digi-Star® Scale System
The optional Digi-Star® 5pt 60,000 lb. differential weigh beam system is available on all Nitro models. Four of the load cells are located under the box and the fifth cell is placed on the hitch. Accounting for environmental protection, the Digi-Star® scale system lets you know how many tons you’ve hauled and spread on your fields, perfect for both farmers and custom operators.
Optional Colours
In addition to the standard yellow, the Nitro lineup is available in red, green, blue and orange.
Gate Indicator
With the gate indicator, you can quickly and easily see how open the endgate is from the seat of your tractor.
Athene ISO Bus Variable Rate Control System
ISOBUS UT displays spreader controls and variable rate (if available on terminal). Athene/SL2 controls spreader and scale system.
Rubber Tongue
The rubber cushion suspension tongue provides operator comfort and reduces mechanical stress and fatigue of both the spreader and the tractor.
Spinner Deck
For better management and spreading performance of poultry litter, Nitro spreaders can be equipped with an optional spinner deck. The interchangeable quick-drop beater system allows operators to conveniently switch between the vertical or spinner deck beater assemblies offering flexibility to both producers and custom operators.
Brakes
When equipped with a brake system, all Nitro spreaders come with two calipers per side for a total of four. Hydraulically operated, these calipers provide the necessary clamping force to keep even our monstrous Nitro 950 in line. Single axle shown. Braking configurations may vary with model. Check model specifications for brake availability.
The race begins between you and bad weather as soon as the hay is cut, trying to get your crop off the field and covered up before it loses its nutrients. Tubeline Balewrappers are helping more farmers realize the major benefits of feeding high quality hay to their cattle year-round. Our BaleWrappers provide a variety of options for hay producers looking to produce high quality silage. The AX2 series wrappers are available for both round and square bales. The NEW series of ECV inline BaleWrappers build upon the proven success of our AX2 series. It’s digital control and easy to use presets and bale counter makes it the ideal wrapper for custom operators.
The TL1000R is a valuable addition to any hay producers arsenal. Easy to maintain and even easier to use, the TL1000R uses tractor hydraulics to spin and rotate the bale ensuring it’s completely wrapped every time.
Features:
Counter
The wrap counter allows you to set the number of wrap rotations for each bale, as well as view the progress for the bale being wrapped.
Offset Twin Wrap
Tubeline’s Twin Wrap Kit laminates two layers together to form a stronger 2-ply layer of plastic. The Twin Wrap Kit is offset, creating a 4″ lead which ensures optimal overlap as the film is layered.
Wrap Cutter
The integrated knife conveniently cuts the wrap automatically after you’ve dumped the bale, allowing you to stay in the tractor and start wrapping the next bale.
Other Standard Features:
• Adjustable Bale Guides
• Skidshoes/Rollers
• Bale Support Rollers
• Transport Lock
Ideal for small to medium sized operations, Tubeline’s new TL1700SR Individual BaleWrapper takes command of your square and round bale wrapping. An easy to use wrap counter allows you to set the desired number of rotations of wrap per bale and displays the current rotation.
Drive Selection
Hydraulically powered, the TL1700SR can easily switch between round and square bales by moving the secondary drive shaft on either of the appropriate stub shaft. Each stub shaft changes the drive ratio to provide the appropriate advancement of the bale.
Integrated Bale Mat
The wrapper’s integrated bale mat protects the wrapped bale from being punctured as it is dumped.
Offset Twin Wrap
Tubeline’s Twin Wrap Kit laminates two layers together to form a stronger 2-ply layer of plastic. The Twin Wrap Kit is offset, creating a 4″ lead which ensures optimal overlap as the film is layered.
Other Standard Features:
• Adjustable Guide Rollers
• Film Crank
• Bale Bumper
• Extra Film Storage Area
• Wrap Cutter
• Wrap Counter
Ideal for small to medium sized operations, the TL1100R is an automatic bale wrapper that takes control of wrapping your round bales individually. Easy to use, this bale wrapper can be run while mounted on the 3PH and connected to the tractors hydraulics or as a standalone unit when equipped with our optional hydraulic power pack.
The TL1100R comes standard with Tubeline’s Twin Wrap Kit. The Twin Wrap Kit simultaneously pulls film from two rolls laminating them together to creating a stronger film. It also offsets the wrap creating a 4″ lead which ensures optimal overlap as the film is layered.
All functions of the TL1100R can be controlled from the wireless remote providing true one person operation.
Wireless Remote
The wireless remote is capable of running all functions of the TL11OOR.
LCD Display
An easy to read display provides real time information and is easy to read in direct sun light.
Hydraulic Bale Dump
Wrapped bales are hydraulically dumped off the table at the end of the automatic cycle.
Adjustable Wrap Carrier
Two quick release handles allow the fixed twin wrap carrier to be raised or lowered to properly center the wrap on the bale for even distribution.
The offset twin wrap kit provides 4 inches of lead between layers. This increases the number of seams and provides a better seal.
Optional Power Pack
The TL1100R-AP model is equipped with the optional power pack for stand alone operation.
Other Standard Features:
• Twin Offset Wrap Kit
• Fully Automatic with LCD Display
• Mounts on CAT 2 3PH
• Hydraulically Powered
• Hydraulic Dump Function
• Flow Control Regulated Table Rotation
• Mechanical Table Rotate Lock
• Transport Lock
• Wrap Cutter

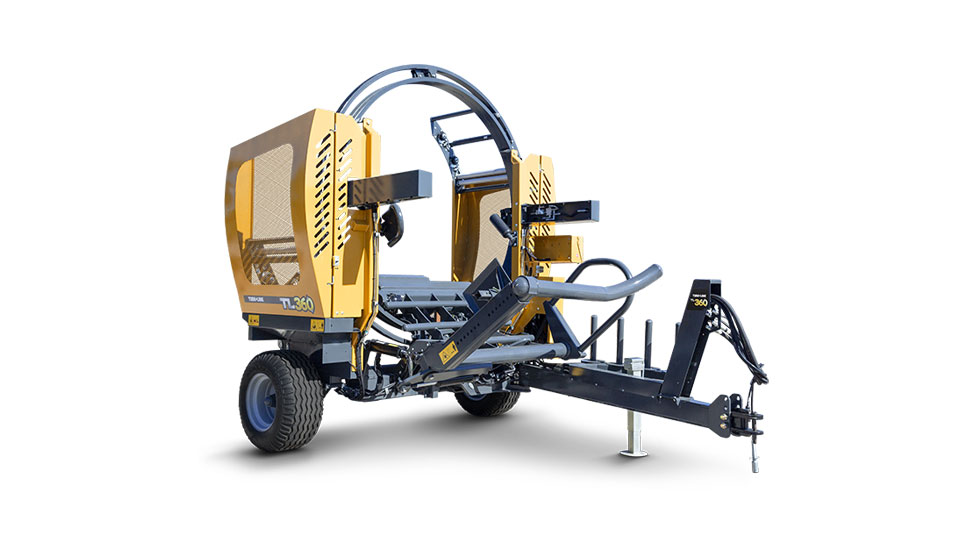

Expanding on our line of individual bale wrappers the TL360 brings high speed in the field wrapping to round bale producers.
The self-loading design allows you wrap on the go while following the baler. The loading arm allows operators to carry a second bale while one is being wrapped.
A cut and hold system ensures that the film is always ready for the next bale while an optional bale tipper lays the bale on its side for easy handling with a grapple.
Control Panel
An intuitive control panel is mounted to the TL360 for easy control when you’re not in the tractor.
Tongue Lock
A tongue lock secures the tongue while the wrapper is in the transport or wrapping position.
Cut and Hold
The cut and hold system ensures that the plastic is secured and ready for new bale that enters the wrapper.
Bale Guides
Adjustable bale guides on the loading arm and wrapping chamber allow the TL360 to accomodate 4′ or 5′ bales.
Other Standard Features:
• Safety switches on doors
• Shut off Switch on the machine
• Electronic Control Valves
• Fully automatic Cycling
• Precision wrapping
• Two 30” pre-tensioners
• Soft start (Hoop)
• Automatic Cut/Hold
• Bale Counter- Lifetime bale count
• Bale Counter – Resettable
• Self-Diagnostic controls
• 12 button individual function controls
• In-cab full function control
• Easy to read display with RAM mount
• Plugs into 12 Volt power outlet
• High-pressure filter (Filter contamination)
The TLR5000 has been refined resulting in a lighter, more maneuverable machine. But don’t let that fool you, this wrapper is built tough to handle heavy silage bales. The easy towing wagon chassis also allows for quick placement. A rear cam axle lowers the chassis bringing the tail to the ground. This ensures the proper angle as the bales are pushed off the wrapper. To ensure good compression, the cam axle allows you to address the amount of drag on the tail to provide the right amount of resistance.
Pre-Tensioners
To create the 55% (approx.) stretch of the plastic, the pre-tensioners are knurled which allows them to grip and pull the plastic between the rollers activating the bonding agent in the film.
Film Snap – Patent Pending
Standard on all inline Balewrapper models, Tubeline’s Film Snap easily cuts wrap with a single action. Press and hold the Film Snap plunger located beside the operator’s panel until both the tensioners pass, triggering the cutting action. The Film Snap bar snaps into action safely cutting the wrap without stopping the cycle.
3 Year Warranty
Inline wrappers carry a 3 Year Limited Warranty. For more information please contact Tubeline Manufacturing.
ECV Exclusive Features
Soft Start
Bale Counter (Lifetime)
Bale Counter (Resettable)
Bale Presets
Large Easy to Read Display
Remote Engine Start
Self-Diagnostics
Single Joystick Control to drive/steer
Other Standard Features
• Large Hoop Now Accommodates Bales up to 6′
• Main Control Panel Wired for Field Installed Options
• Safety Shut Off Switch on Guards
• Safety Shut Off Switch on Panel
• Retractable Tongue
• Folding Tongue
• Electric start 13 HP Honda gas engine (18 amp charging system)
• Low Oil Alert on Engine
• Spark Arrestor on Engine
• Hydraulic Manifold
• Hydraulic Steering
• Temperature Gauge on Hydraulic Tank
25L / 6.6 USG Fuel Tank with Fuel Pump
• Limit Switches
• Adjustable Stroke Length on Charge Table
• Electric over Hydraulic Controls
• Fully Automatic Cycling
• Automatically Idles Down When Cycle • Completed
• Drive Wheel
• Wrap Carrier
• Lock Pin (Hoop)
• Roller Wheels
• Push Ram
• Push Ram Cylinders
• Cross Tube Unloading (to push off last bale) Patented
• King Pins with Tapered Bearings
• Road Lights
• 3-Year Warranty
• Guide Rollers on Discharge Ramp
• Quick Start Power Jack
• Hydraulic Over Centre Cam Axle to Pack Bales Tightly
• Lug Tires on Rear Axle
IThe TL Series inline bale wrappers are built to provide producers and custom operators with high efficiency and proven reliability. To ensure that everyone can reap the benefits of the high moisture hay, Tube-Line BaleWrappers are available in multiple configurations to suit your needs and your budget.
Film Snap – Patent Pending
Standard on all inline Balewrapper models, Tubeline’s Film Snap easily cuts wrap with a single action. Press and hold the Film Snap plunger located beside the operator’s panel until both the tensioners pass, triggering the cutting action. The Film Snap bar snaps into action safely cutting the wrap without stopping the cycle.
3 Year Warranty
Inline wrappers carry a 3 Year Limited Warranty. For more information please contact Tubeline Manufacturing.
ECV Exclusive Features
• Soft Start
• Bale Counter (Lifetime)
• Bale Counter (Resettable)
• Bale Presets
• Large Easy to Read Display
• Remote Engine Start
• Self-Diagnostics
• Single Joystick Control to drive/steer
Other Standard Features
• Main Control Panel Wired for Field Installed Options
• Safety Shut Off Switch on Guards
• Safety Shut Off Switch on Panel
• Retractable Tongue
• Folding Tongue
• 20HP Honda Engine Kit c/w 14 GPM Pump
• Low Oil Alert on Engine
• Spark Arrestor on Engine
• Hydraulic Steering
• Temperature Gauge on Hydraulic Tank
• 25L / 6.6 USG Fuel Tank with Fuel Pump
• Hydraulic Manifold
• Electric over Hydraulic Controls(LSV Model Only)
• Limit Switches (LSV Model Only) br>
• Electronic Control Valve (ECV Model Only)
• Fully Automatic Cycling
• Larger Hoop for 6′ Round Bales
• Soft Start
• Drive Wheel
• 30″ Pre-Tensioners
• Wrap Carriers (Rolls Carried)
• Lock Pin (Hoop)
• Roller Wheels
• Push Ram
• Push Ram Cylinders
• Cross Tube Unloading (to push off last bale) Patented
• King Pins with Tapered Bearings
• Road Lights
• Cam Brakes
• 3-year Warranty
• Lug Tires on Rear Axle
•Remote Steering and Shut Down Kit
• Offset Twin Wrap Kit
The TL Series inline bale wrappers are built to provide producers and custom operators with high efficiency and proven reliability. To ensure that everyone can reap the benefits of the high moisture hay, Tube-Line BaleWrappers are available in multiple configurations to suit your needs and your budget.
Film Snap – Patent Pending
Standard on all inline Balewrapper models, Tubeline’s Film Snap easily cuts wrap with a single action. Press and hold the Film Snap plunger located beside the operator’s panel until both the tensioners pass, triggering the cutting action. The Film Snap bar snaps into action safely cutting the wrap without stopping the cycle.
Inline wrappers carry a 3 Year Limited Warranty. For more information please contact Tubeline Manufacturing.
ECV Exclusive Features
• Soft Start
• Bale Counter (Lifetime)
• Bale Counter (Resettable)
• Bale Presets
• Large Easy to Read Display
• Remote Engine Start
• Self-Diagnostics
• Single Joystick Control to drive/steer
Other Standard Features
• Main Control Panel Wired for Field Installed Options
• Safety Shut Off Switch on Guards
• Safety Shut Off Switch on Panel
• Retractable Tongue
• Folding Tongue
• Electric Start 13HP Honda Gas Engine (18 Amp Charging System)
• Low Oil Alert on Engine
• Spark Arrestor on Engine
• Hydraulic Manifold
• Hydraulic Steering
• Temperature Gauge on Hydraulic Tank
• 25L / 6.6 USG Fuel Tank with Fuel Pump
• Limit Switches
• Adjustable Stroke Length on Charge Table
• Round to Square Bale Wrapper Conversion
• Roller Bed Locking Lever
• Electric over Hydraulic Controls
• Fully Automatic Cycling
• Automatically Idles Down When Cycle Completed
• Drive Wheel
• 34″ Pre-Tensioner Carriers
• Lock Pin (Hoop)
• Roller Wheels
• Push Ram
• Push Ram Cylinders
• Cross Tube Unloading (to push off last bale) Patented
• King Pins with Tapered Bearings
• Road Lights
• Quick Start Hydraulic Over Centre Cam Axle
• Lug Tires on Rear Axle
• Square Bale Riser Kit to Accept 6ft. Long Square Bales
• Side Hill Roller Kit
• Lug Tires on Rear Axle
• Quick Start Power Jack
The TL Series inline bale wrappers are built to provide producers and custom operators with high efficiency and proven reliability. To ensure that everyone can reap the benefits of the high moisture hay, Tube-Line BaleWrappers are available in multiple configurations to suit your needs and your budget.
Pre-Tensioners
To create the 55% (approx.) stretch of the plastic, the pre-tensioners are knurled which allows them to grip and pull the plastic between the rollers activating the bonding agent in the film.
Film Snap – Patent Pending
Standard on all inline Balewrapper models, Tubeline’s Film Snap easily cuts wrap with a single action. Press and hold the Film Snap plunger located beside the operator’s panel until both the tensioners pass, triggering the cutting action. The Film Snap bar snaps into action safely cutting the wrap without stopping the cycle.
3 Year Warranty
Inline wrappers carry a 3 Year Limited Warranty. For more information please contact Tubeline Manufacturing.
ECV Exclusive Features
• Soft Start
• Bale Counter (Lifetime)
• Bale Counter (Resettable)
• Bale Presets
• Large Easy to Read Display
• Remote Engine Start
• Self-Diagnostics
• Single Joystick Control to drive/steer
Other Standard Features
• Main Control Panel Wired for Field Installed Options
• Safety Shut Off Switch on Guards
• Safety Shut Off Switch on Panel
• Retractable Tongue
• Folding Tongue
Electric Start 13HP Honda Gas Engine (18 • • Amp Charging System)
• Low Oil Alert on Engine
• Spark Arrestor on Engine
• Hydraulic Manifold
• Hydraulic Steering
• Temperature Gauge on Hydraulic Tank
• 25L / 6.6 USG Fuel Tank with Fuel Pump
• Limit Switches
• Adjustable Stroke Length on Charge Table
• Electric over Hydraulic Controls
• Fully Automatic Cycling
• Automatically Idles Down When Cycle Completed
• Drive Wheel
• 34″ Pre-Tensioner Carriers
• Lock Pin (Hoop)
• Roller Wheels
• Push Ram
• Push Ram Cylinders
• Cross Tube Unloading (to push off last bale) Patented
• King Pins with Tapered Bearings
• Road Lights
• 3-Year Warranty
• Guide Rollers on Discharge Ramp
• Quick Start Hydraulic Cam Axle
• Lug Tires on Rear Axle
• Quick Start Power Jack

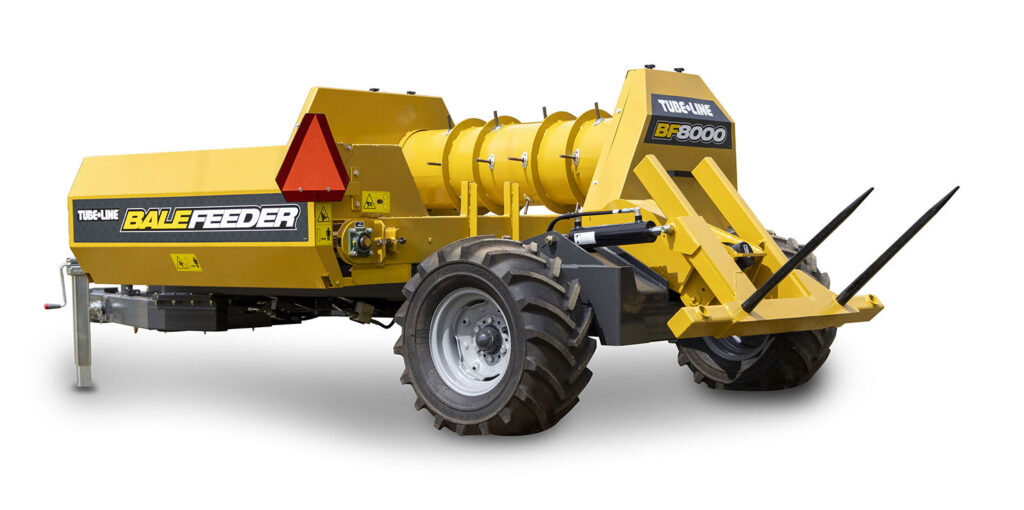

The BF8000 SL is designed to feed out round bales up to 6’ in diameter and weighing up to 2,500 lbs. The BF8000SL is equipped with a hydraulic loading arm and two prong bale spear, to lift and place the bale on the table. The loading arm can also be used to carry a second bale to the field. Once placed on the table, an apron chain rotates the bale as the drum’s fingers unravel the hay. As the core of the bale is approached, the table can be tilted increasing contact between the bale and the drum ensuring the entire bale is fed out.

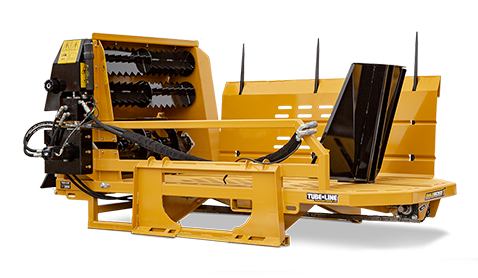

The BOSS 1 is a large square bale processor that mounts on your skidsteer, tractor loader, or telehandler combining adaptability with accessibility. The BOSS 1 allows you to bed in tight spots that are nearly impossible to get to with a trail behind processor.
Scoop N’ Go
The Scoop N’ Go design of the Boss 1 allows operators to quickly load and process bales making quick work of most jobs.
Restrictor Bars
Adjustable restrictor bars keep loose bales from flaking into the shredding chamber ensuring consistent performance.
Adjustable Deflector
The variable position deflector allows you to go from bedding, to feeding, to windrowing.
Other Standard Features
• Loader Mount
• Flail Rotor
• Paddle Rollers
• Knives
• Pusher
• Hydraulic Power
• Drop Floor
Providing increased capacity, the Bale BOSS 4 can carry up to four 4x4x9 bales making it ideal for large feed lots or large operations where bales may need to be hauled daily.
Self Loading (Unloading)
The self loading design of the BOSS 4 allows you to easily spear a stack of bales and lower them in place.
Bale Spears
Four Bale Spears drop from the rear of the bed when raised allowing you to spear the bottom bale and lift the stack when the bed is lowered.
Bale Spears
Four Bale Spears drop from the rear of the bed when raised allowing you to spear the bottom bale and lift the stack when the bed is lowered.
Other Standard Features
• Dual Apron Chains
• Belt Drive with Tensioner
• Distribution Chute
• Adjustable Hitch
• Adjustable Tongue Height
The Bale BOSS 2 is the perfect tool for all of your large square bale processing needs. From bedding to feeding, the Boss 2 can manage it all.
Self Loading
The self loading design allows you to carry two bales. One on the table and one on the forks.
The adjustable paddle roller feeds the top portion of the bale into the flail. Height and speed adjustments allow for different sized bales. Not available on HD model.
Flail Rotator
Belt driven from the tractors PTO, the flail rotor easily chops through a variety of bales.
Other Standard Features
• Adjustable Hydraulics
• Travel Lock
• Distribution Chute
• Belt Drive with Tensioner
• Twine Guard
The Bale BOSS R is built with the same versatility and quality you’ve come to expect from the Bale BOSS family. Bale BOSS R holds one round bale up to 4 feet wide and up to 6 feet in diameter.
Self Loading
A hydraulic loading arm folds down from the side of the unit allowing a single round bale to be lifted onto the apron.
Controller
All of the Bale BOSS R functions are accessible through the wired controller.
Apron Chain
A rugged apron chain feeds the bales into the flail for processing.
Other Standard Features
• Loader Mount
• Flail Rotor
• Adjustable Deflector
The BF8000 SL is designed to feed out round bales up to 6’ in diameter and weighing up to 2,500 lbs. The BF8000SL is equipped with a hydraulic loading arm and two prong bale spear, to lift and place the bale on the table. The loading arm can also be used to carry a second bale to the field. Once placed on the table, an apron chain rotates the bale as the drum’s fingers unravel the hay. As the core of the bale is approached, the table can be tilted increasing contact between the bale and the drum ensuring the entire bale is fed out.
Self Loading
The BF8000SL has a hydraulic self loading design removing any need for additional equipment to load bales onto the BaleFeeder table.
Loading Arm Position Indicator
The mechanical loading arm position indicator lets you know when the bale spears are in the ideal position for loading different sizes of bales, or when the loading arm is in position for transporting.
Live Floor with Apron Chain
The live floor has steel slats, driven by two robust apron chains, driving the bale towards the rotor with ease.
Hydraulic Table
The live floor hydraulically angles up to 22.5° ensuring the last of each bale gets placed onto the field where you want it.
Retractable Fingers
The BaleFeeder’s drum uses retractable fingers to grab and fluff the bale on the table side, while retracting back into the drum on the unloading side preventing material from being pulled back under the drum back onto the table
.
Standard Features
• Two Bale Capacity (one on table & one on loading arm)
• Bale sizes: 4-5′ wide up to 6′ round
• Retractable fingers on main drum
• 12 GPM Hydraulic Flow
• Table Angles up to 22.5°
Contact Histand's today about pricing, to get a quote and more information.
